PRODUCT DETAILS

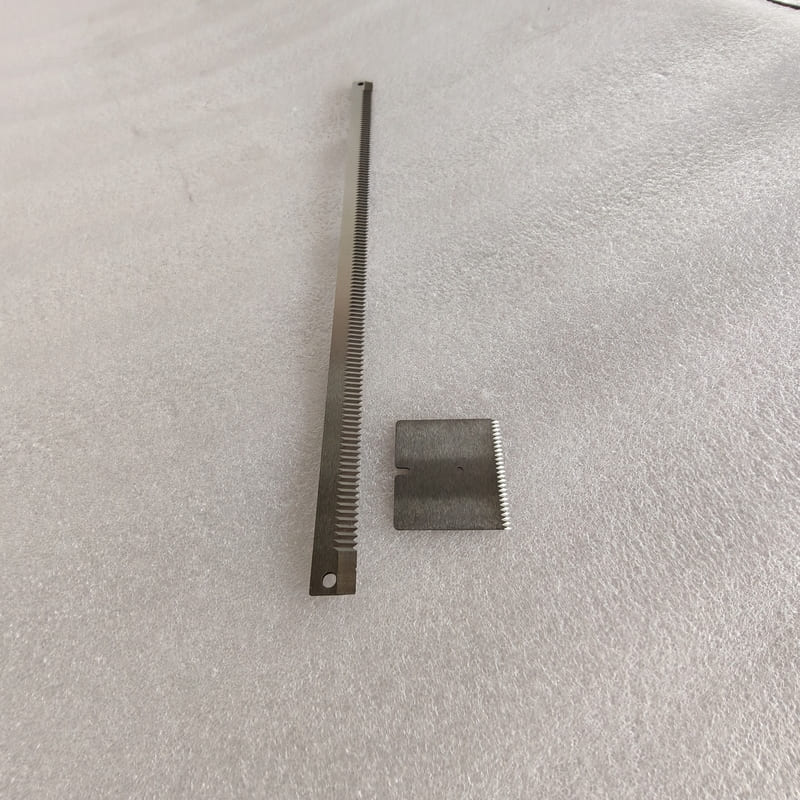

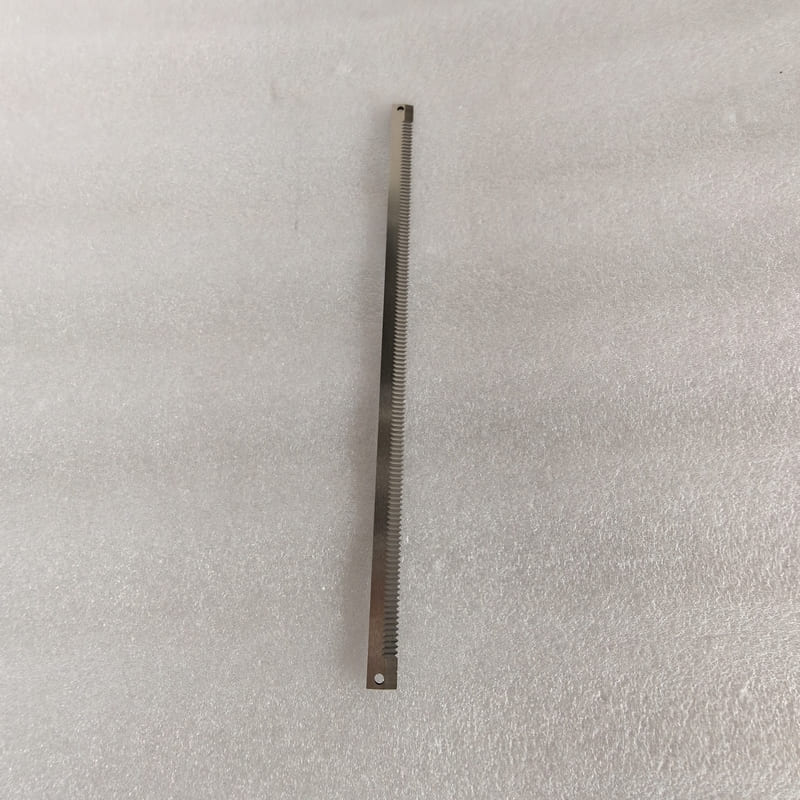

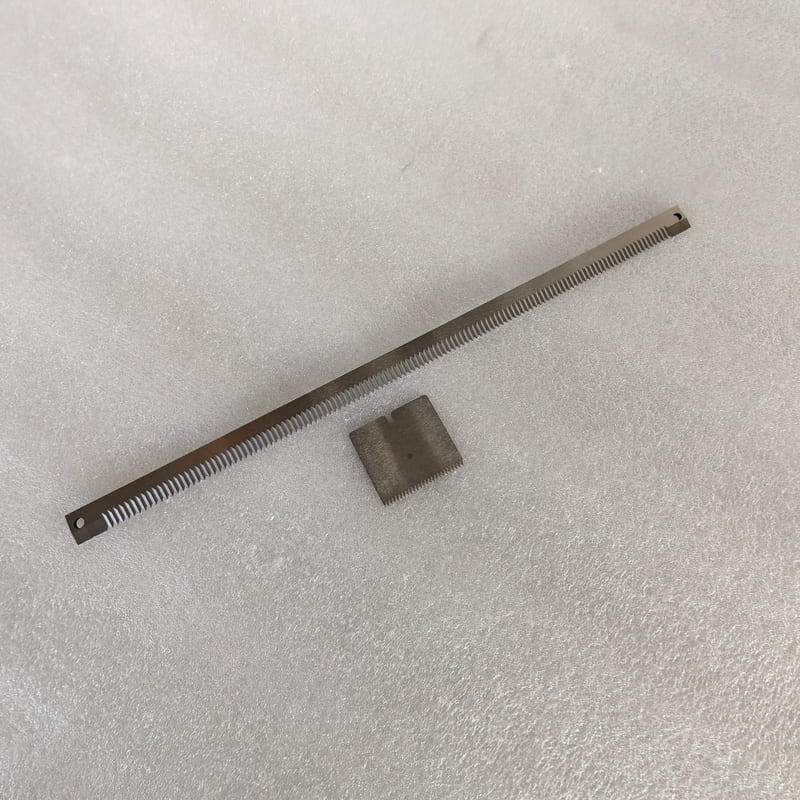

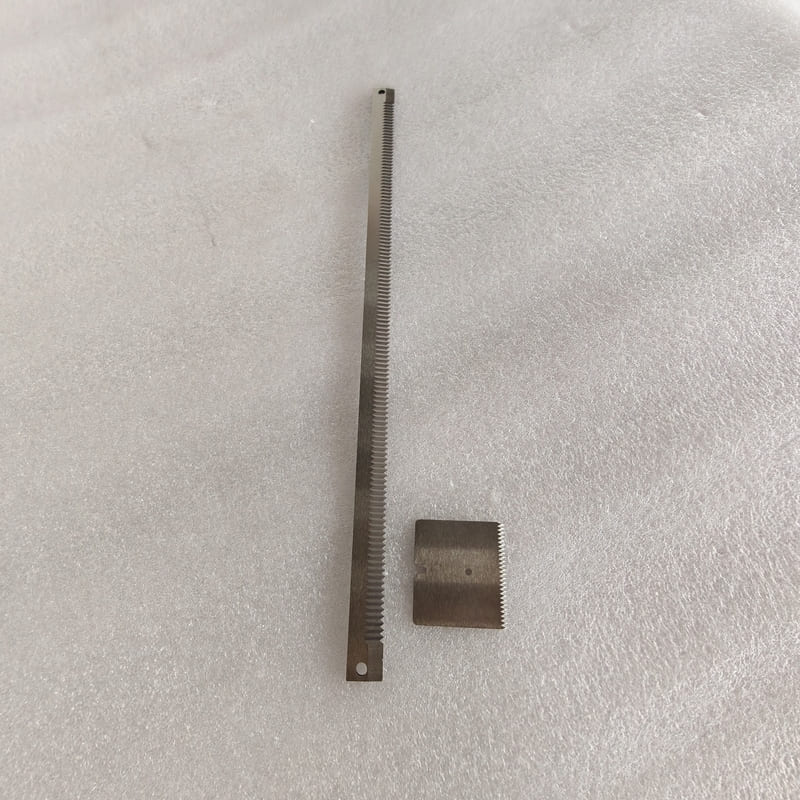

High-Speed Wear-Resistant Tear-Free Serrated Packaging Machine Knives
Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. is a leading manufacturer of high-precision serrated knives specifically engineered for continuous-use packaging machines. These specialized blades are designed to deliver consistent, clean cuts on a wide range of flexible packaging materials—including plastic films, laminates, paper, and composite bags—at high line speeds. Manufactured from premium-grade tool steels and finished with precision-ground serrated edges, our packaging machine knives ensure tear-free seals, reduced downtime, and exceptional wear resistance for your automated packaging lines.
- Order(MOQ)
- 1
- Payment
- TT,LC
- Product Origin
- China
- Color
- N/A
- Shipping Port
- Ma'anshan Shipping Port
- Lead Time
- 30 days
Need a custom size or material? Send us your drawing.
Product details
Ma'anshan Guangchuan supplies precision serrated packaging machine blades and custom cutting components to packaging companies worldwide. Our blades feature high-precision, uniform tooth profiles and mirror-polished anti-stick surfaces, making them compatible with all major vertical form-fill-seal (VFFS) machines, fluid packaging machines, and pouch packaging machines. We offer reliable OEM replacement solutions that help reduce adhesive buildup and extend production uptime.
Technical Specifications
|
Parameter |
Description |
| Material Options | D2 (SKD11), 420 Stainless Steel, HSS (M2), LD, High-Grade Carbide (Customizable) |
| Hardness | 55-62 HRC (Optimized for high-speed film and laminate cutting) |
| Tolerances | Flatness (Parallelism) ≤ 0.003mm; Tooth Pitch Tolerance ±0.01mm; Runout ≤ 0.005mm |
| Blade Length | 50mm to 800mm+ (Fully Customizable) |
| Thickness Range | 0.3mm to 10mm (Tailored to machine requirements) |
| Tooth Profile | V-Serrated, W-Serrated, Perforation, Custom Pitch (1-5mm) & Angles |
| Processing | Vacuum Heat Treatment, Deep Cryogenic Treatment, Precision CNC Grinding, Optional TiN/DLC Coating |
Main Features
- Precision Serrated Tooth Geometry: Each blade features laser-cut or precision-ground serrations with uniform pitch and height, ensuring consistent tearing, perforation, or cutting across the entire blade length.
- Exceptional flatness and parallelism: CNC machining effectively eliminates blade vibration, uneven wear, and seal contamination during high-speed operation.
- Superior Wear & Corrosion Resistance: Premium tool steel construction (with optional PVD coatings) provides exceptional edge retention, even when cutting abrasive or chemically treated packaging films.
- Flexible Material Compatibility: Engineered to handle all common packaging materials, including BOPP, PET, PE, laminated films, kraft paper, and composite foil bags.
- Machine-Specific Fitment: Precision-machined mounting holes and dimensions ensure drop-in compatibility with all major packaging machine brands (including flow wrappers, vertical form-fill-seal, and horizontal sealers).
Advantages
- Consistent Seal Quality: The serrated edge delivers clean, tear-free cuts without damaging the heat-seal area, ensuring reliable seals and reducing product spoilage.
- Extended Service Life: High-quality steel and precision grinding processes extend the service life of these blades beyond that of standard OEM blades, thereby minimizing costly replacement expenses.
- Reduced Downtime: Uniform tooth wear and consistent cutting performance eliminate mid-run jams or mis-cuts, maximizing line uptime.
- Versatile Cutting Performance: Available in multiple serration profiles (cutting, perforating, tearing) to meet specific packaging requirements (easy-tear notches, perforated tear strips, full cuts).
- Cost-Effective OEM Alternative: Manufacturer-direct pricing provides premium-quality blades at a fraction of OEM replacement costs, with no compromise on fit or performance.
Product Applications
- Flexible Film Cutting: For flow wrap, pillow bag, and VFFS packaging machines
- Perforated Tear Strips: Creating easy-tear openings on snack bags, stand-up pouches, and shrink wrap
- Heat-Seal Cutting: Precision trimming of sealed edges without damaging the seal integrity
- Paper & Cardboard Packaging: Cutting kraft paper, corrugated boxes, and paper-based packaging materials
- Composite Material Cutting: Handling multi-layer laminates, foil-backed films, and coated papers
Why Choose Us
- Packaging Industry Expertise: We have extensive expertise in manufacturing cutting tools for automated packaging equipment
- Tolerance & Quality Guarantee: Every blade undergoes rigorous quality control, including hardness testing, flatness verification, and tooth pitch inspection
- Advanced Manufacturing: State-of-the-art CNC grinding and heat treatment facilities ensure consistent, high-precision production
- Fast Lead Times: We maintain extensive tool steel stock and offer expedited production for urgent replacement needs
- Comprehensive Support: Our technical team provides expert guidance on blade selection, installation, and maintenance to maximize your line efficiency
