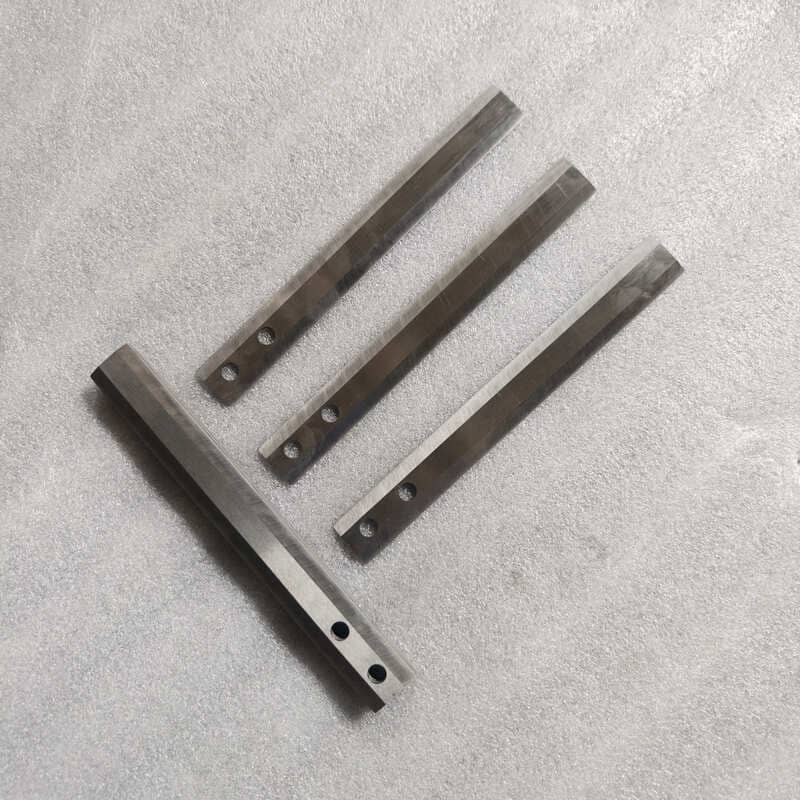

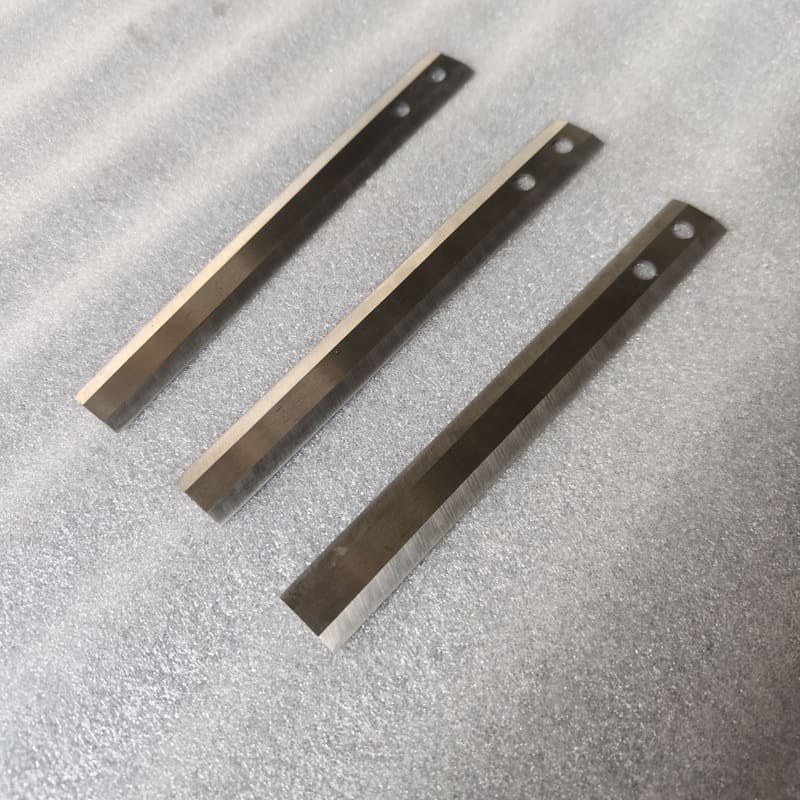

HSS Precision Straight Industrial Cutting Blades
Ma'anshan Guangchuan Machinery Knife Mold Technology Co., Ltd. is a reliable maker of straight industrial cutting blades built for multi-industry automatic cutting equipment. These rectangular mounted cutters deliver clean, burr-free cuts on films, paper, soft plastics and light composite materials under continuous high-speed running. Made from premium high-speed steel with vacuum quenching and CNC edge grinding, they maintain stable sharpness and outstanding abrasion resistance to lift overall line productivity.
- Order(MOQ)
- 1
- Payment
- TT,LC
- Product Origin
- China
- Color
- N/A
- Shipping Port
- Ma'anshan Shipping Port
- Lead Time
- 30 days
Need a custom size or material? Send us your drawing.
Product details
This series straight cutters feature standardized precision mounting holes for quick installation on various cutting machines. Single-sided bevel edges lower cutting resistance, reduce material tearing, and minimize frequent blade replacement during long continuous production shifts.
Technical Specifications
|
Feature |
Technical Details |
| Material | M2 HSS, D2 Tool Steel, 304 Stainless Steel, Cr12MoV (Customizable) |
| Hardness | 56-64 HRC, matched to different cutting raw materials |
| Tolerances | Straightness ≤0.004mm; Flatness ≤0.003mm; Hole position tolerance ±0.01mm |
| Blade Length | 80mm to 1200mm, fully customizable per machine model |
| Thickness Range | 1mm to 12mm, adjustable according to cutting load |
| Edge Geometry | Single bevel, double bevel, custom cutting angles |
| Mounting Design | 2/3/4 precision drilled fixing holes, custom hole spacing |
| Processing | Vacuum heat treatment, deep cryogenic stabilization, precision CNC grinding |
Main Features
- Uniform Precision Ground Edge: Full-length consistent bevel grinding ensures equal cutting force across the whole blade, avoiding partial incomplete cutting.
- High Wear Resistant HSS Matrix: High-speed steel base withstands long-term friction from paper and plastic, slowing edge dulling speed obviously.
- Standardized Mount Hole Layout: Precisely positioned fixing holes achieve seamless alignment with cutter holders, no offset or vibration during high-speed operation.
- Low Cutting Resistance Bevel Design: Optimized edge angle reduces material squeeze deformation, ideal for thin flexible raw materials easy to tear.
- Stable Internal Stress Treatment: Cryogenic processing eliminates residual stress inside steel, preventing blade bending and warping after long working hours.
Advantages
- Clean Neat Cutting Surface: No burrs, frays or deformation on finished cut pieces, cutting secondary trimming waste.
- Long Continuous Service Cycle: Strong abrasion resistance extends blade service life, lowering frequency of machine downtime for tool swapping.
- Wide Cross-Industry Compatibility: Standard outer dimensions fit most automatic cutting machines without extra modification to equipment fixtures.
- Flexible Customization Support: Adjust length, thickness, hole quantity and edge angle to match unique cutting material and equipment demands.
- Economical Factory Direct Supply: Direct factory supply cuts intermediate costs, offering equal quality at lower cost than brand OEM replacement blades.
Product Applications

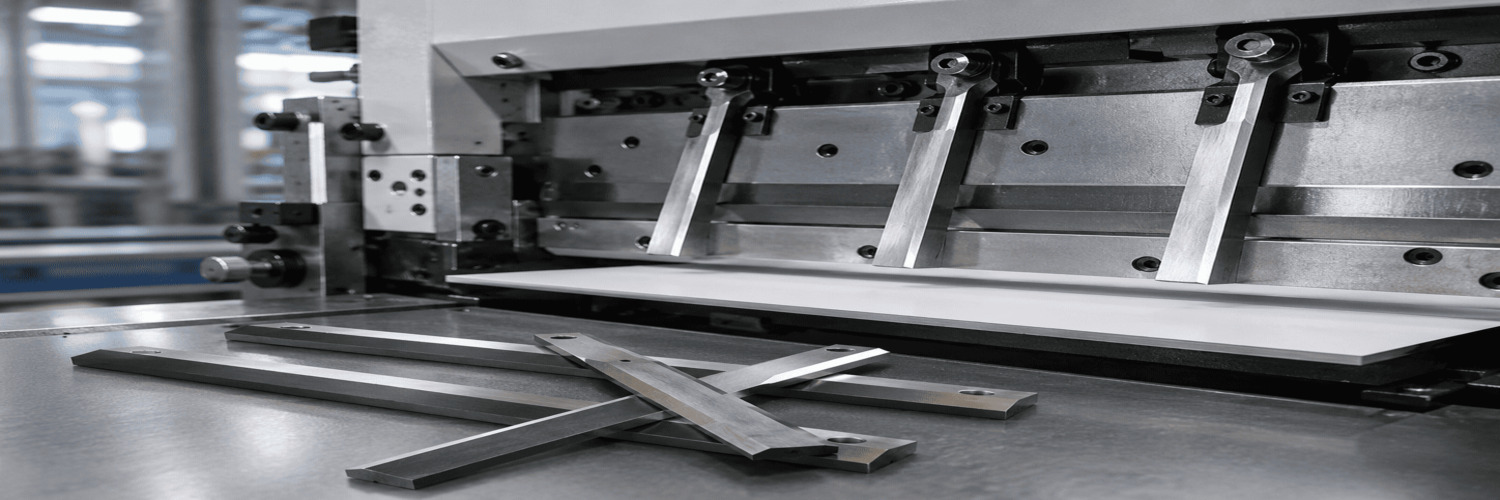

- Matching Equipment: Automatic cross cutting machines, slitting auxiliary cutters, packaging bag cutters, paper processing guillotines.
- Processable Materials: Plastic films, kraft paper, coated paper, non-woven fabrics, thin foam, light soft composite sheets.
- Covered Industries: Flexible packaging manufacturing, printing and paper converting, non-woven textile processing, daily chemical packaging production.
- Typical Working Scenarios: Fixed-length cross cutting, finished edge trimming, batch material equal sizing.
Why Choose Us
- Multi-Sector Cutting Application Insight: Master different abrasion and cutting demands from packaging, printing and textile raw materials.
- Full Batch Pre-Delivery Inspection: Every blade gets strict detection on flatness, hardness and hole dimensional accuracy before delivery.
- Complete Custom Machining Capacity: Modify all physical parameters to match non-standard cutting equipment and special raw material cutting needs.
- Advanced Precision Machining Equipment: CNC grinders and sealed vacuum heat treatment equipment guarantee stable batch product performance.
- Targeted Technical Guidance: Provide professional advice on blade material selection, installation clearance and daily maintenance optimization.
